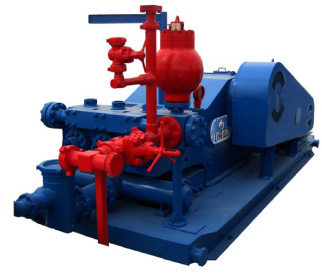

Mud Pumps


Loadmaster Universal Rigs, Inc. offers high quality mud pumps from 500 HP to 2200 HP, based on the time proven industry standard F-Series Mud Pump and are operationally and spare parts compatible. Key improvements and upgrades distinguish the Loadmaster Premium Series of mud pumps. Manufacturing under a strict API Q1 QA/QC program, all pump assemblies meet standard installation tolerances. Each mud pump is fully tested in our factory before delivery. The test data is recorded digitally as a part of the QC program. Third party certification can be provided upon request. All Loadmaster pumps can be unitized with either AC or DC motors, or mechanical drives. Pumps can be mounted on standard oilfield tailboard skids, or trailerized for easy transportation.

Loadmaster Premium F-Series Mud Pump parts feature the following improvements:

  • Matched sets of Pinion gear with hardened tooth profile and single piece bull gear with modified herring bone hardened tooth to enlarged tooth to increase AMGA class rating with contact area for extended life and improved reliability
  • Main bearing housings are made of forged steel rather than cast steel
  • Crosshead surfaces are hardened while leaving crosshead guide un-hardened, allowing the wear to concentrate on the guides because of this hard-soft combination, thus extending the life of the crosshead
  • A pressurized lower crosshead guide operating at 2 psi insures a floating crosshead to extend the life of the lower guide
  • Pulsation dampeners are made of forged steel rather than cast steel, improving reliability. All high pressure parts are hydrostatically tested. Internal components are changeable with off the shelf consumables.
  • API 7K Modules are interchangeable with off the self replacements. Other OEM modules can be accommodated
  • Fabricated forged steel balanced crankshaft
  • Triple Redundant (failure proof) Power End Lube System: Internal Splash / Gravity
  • Feed, Internal Gear Driven Pump, and External Gear Pump, Electric Motor (explosion proof) Driven
  • Central lubrication manifold system with Stainless Steel tubing for feeding all main, eccentric, and pinion bearings. Pressurized lubrication is also provided to the upper and lower crosshead slide for longer crosshead life
  • Discharge Manifold with 5 1/8” API 5,000 psi RTJ flanged both sides, manufactured from a single trepanned, heat treated alloy steel forging
