Multi-Well Skidding System
 |

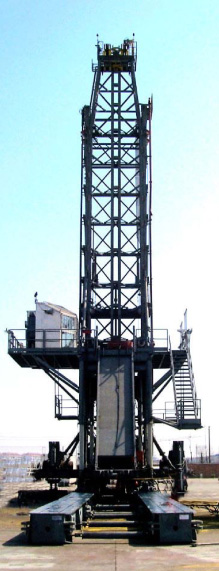

Our multi-well skidding system is shown implemented on our LS30- AC desert trailer rig.
This system allows the well-to-well movement, of the mast and substructure, with pipe setback, without moving the other rig systems and components.
The system consists of:
- Heavy duty pinned skid rails in transportable sections, with ground level pinned spreaders and alignment braces
- Substructure skid base
- Mast Carrier skid base
- Hydraulic skidding cylinders with claw base
- Electrical drag chain with rail mounted carrier
- Trailerized mud transfer tank and piping spools
Features
- 75 meter skidding range (customizable)
- “Pick-Up-Lay-Down skid rail design for unlimited skidding range with few rail sections
- Skid Base eliminates need for mast carrier or substructure modifications
