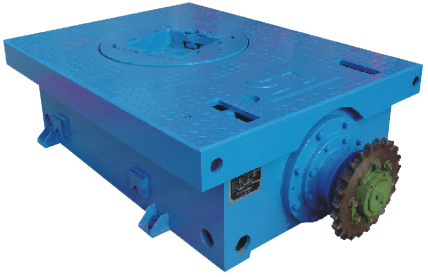

Rotary Tables
Loadmaster’s rotary tables come in 6 sizes to suit your specific drilling needs.
Features include:
- Large oil capacity and superior durability
- Forged steel, fabricated housing and a heat treated, forged steel turntable
- Spiral-bevel, induction-hardened gears
- Table is locked into position with built in locks accessible from the top
| Style | LM75 | LM105 | LM175 | LM205 | LM275 | LM375 |
|---|---|---|---|---|---|---|
| Diameter (mm) | ⌀190.5 | ⌀266.7 | ⌀444.5 | ⌀520.7 | ⌀698.5 | ⌀952.5 |
| Max Static Load (kN) | 585 | 1350 | 2250 | 3150 | 4500 | 5850 |
| Max Running Speed (rpm) | 300 | 300 | 300 | 300 | 300 | 300 |
| Speed Ratio | 01:03:6 | 01:03:4 | 01:03:6 | 01:03:2 | 01:03:7 | 01:03:7 |
| Weight (kg) | 200 | 1405 | 3880 | 5560 | 6930 | 7480 |
| Length (mm) | 1164 | 1705 | 1956 | 2282 | 2380 | 2432 |
| Width (mm) | 820 | 980 | 1280 | 1480 | 1680 | 1797 |
| Height (mm) | 350 | 530 | 585 | 665 | 685 | 705 |
